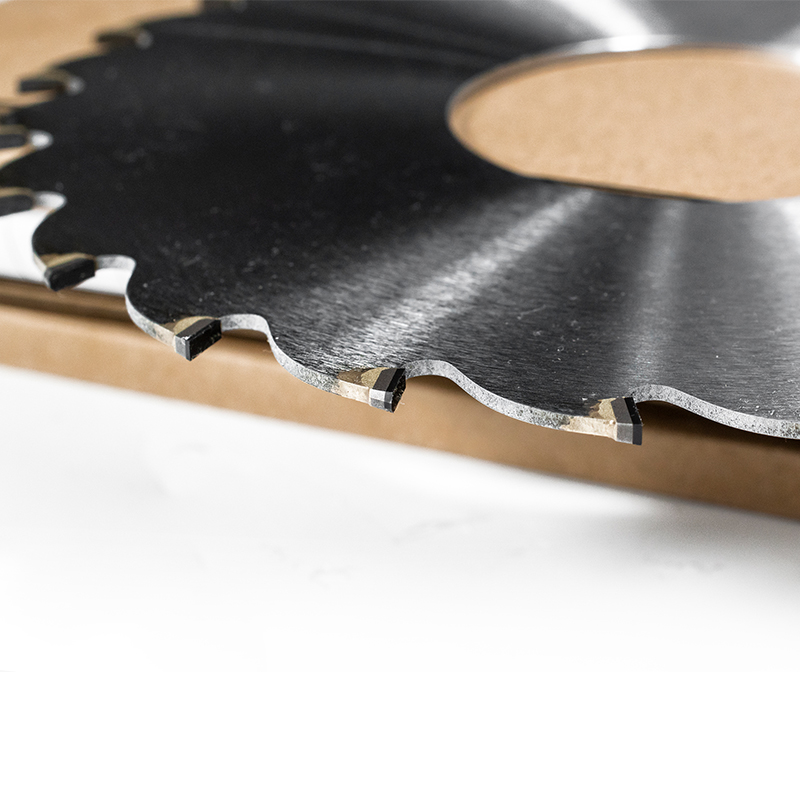

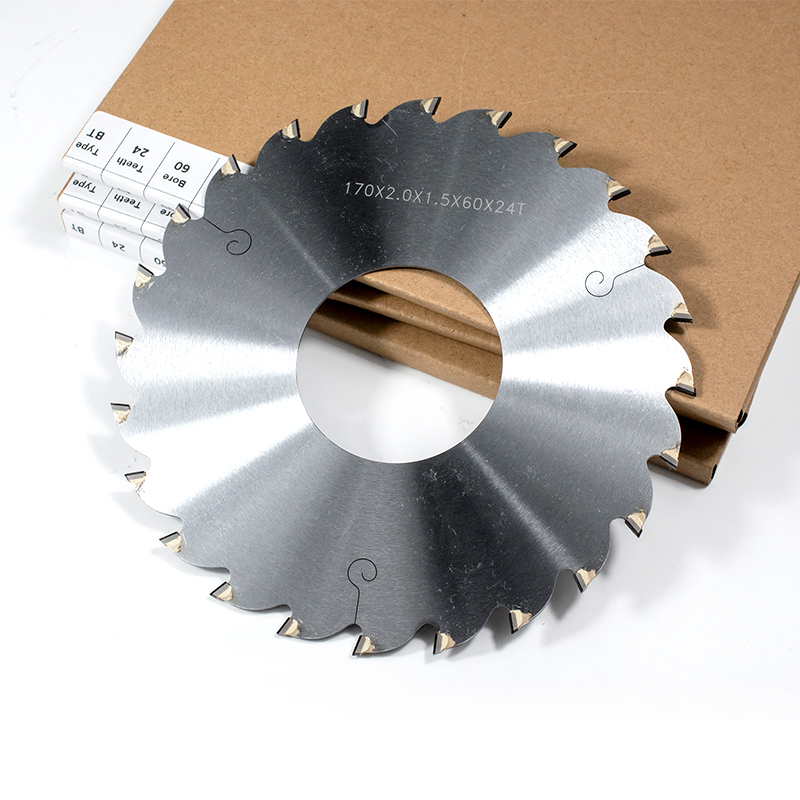

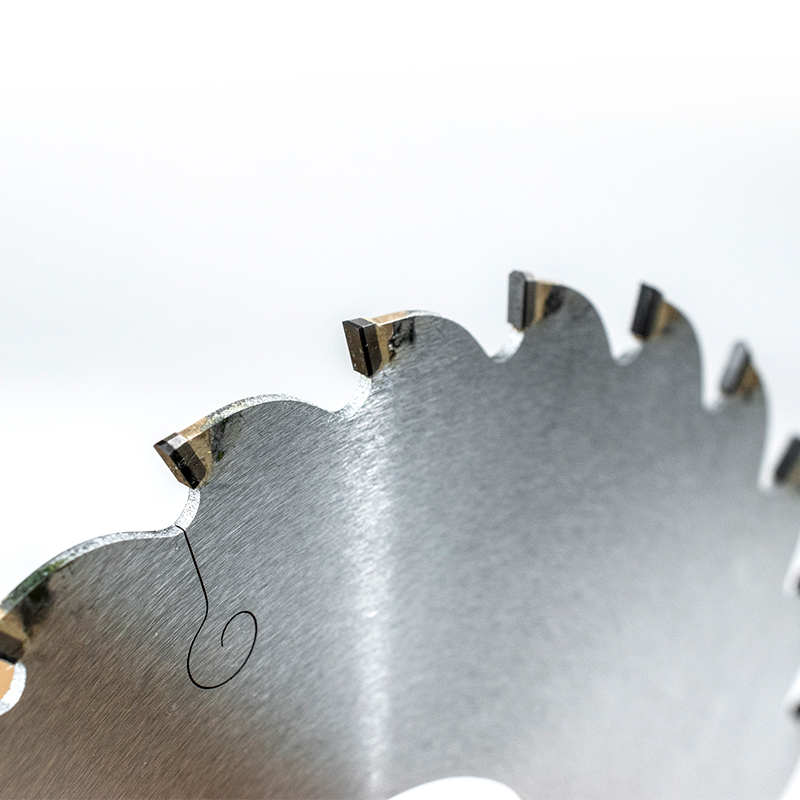

PCD saw blade for cutting the Panel Furniture

Another name: PCD blade for cutting the Panel Furniture

Diamond Tools

Diamond blade

Wood material special-purpose saw blade Steel copper material special-purpose saw blade Aluminum material industry saw blade Masonry Saw Blade Tile Cutting Disc Marble Cutting Disc concrete Cutting Disc Granite Cutting Disc Blade with protectional teeth Tile turbo diamond blade

Diamond segment

Diamond Segments Gang Saw Segment Core Drill Bits Segment Sandwich Segment Marble Segment Granite Segment Sandstone Segment Grinding Segment Arix Segment

Diamond/CBN grinding wheel

CBN Grinding Wheel For Woodturning Tools Ceramic(Vitrified)Grinding Wheel Grinding wheels for carbide Diamond Cut off Wheel Diamond Grinding Wheel CBN Grinding Wheel

Polycrystalline diamond compact (PDC cutter)

Custom Special-shaped PDC Cutters Polycrystalline diamond compact(PDC cutter)Special Shaped PDC Sphere shaped PDC Square PDC cutter

Diamond grinding tools

Diamond grinding shoes Trapezoidal Grinding shoes segments for HTC floor grinder Diamond grinding segment for Husqvarna grinder PCD Cup Wheel Single Row Cup Wheel Double Row Cup Wheel continuous turbo cup wheel Segmented Turbo Cup Wheel

Diamond polishing pads

Diamond Polishing Drum Wheel Metal Bond Polishing Pads Diamond Wet Polishing Pads Diamond Dry Polishing Pads Diamond Floor Polishing Pads Convex Polishing Pads

Diamond Core Drill Bits

Poly-crystalline diamond compact bit - PDC Bit Diamond DTH Bit PDC Drill Bit Hot Pressed Drill Bit Electroplated Diamond Drill Bit Geological water well drill bits

Diamond Wire Saw Rope

Diamond Wire- saws for granite quarries Diamond wire saw for cutting Diamond Wire-saws for marble block squaring and profiling Diamond Wire-saws for marble quarries Diamond Wire-saws for Granite block squaring and profiling Diamond Wire-saws for multi-wire machines

PCD saw blades

Ultra-thin PCD saw blade for cutting aluminum PCD saw blade for cutting the Panel Furniture

Product details
parameter

Feature:

Professional processing of all kinds of panel furniture

Low noise design;
Smooth and seamless cutting surface；

Strong durability

Cutting Materials：

Particleboard, density board, melamine board, medium density board, high density board, three plywood, low density board, plywood, medium fiber board, solid wood composite material and other board furniture.

Applicable Machine：

Computer automatic cutting saw, electronic reciprocating saw, pushing table saw, electronic cutting saw, trimming saw.

Product	Outer diameter	Saw Kerf	Plate thickness	Inner diameter	Number of teeth
ID	D(mm）	B(mm)	b(mm)	d(mm)	Z
001	300	3.2	2.6	25.4/30	60/84/96
002	350	3.5	2.5	25.4/30	72/84/96
003	350	4.4	3.2	25.4/30	72/84/96
004	380	4.4	3.2	25.4/30	72/84/96
005	400	4.4	3.2	25.4/30	72/84/96
006	430	4.8	3.5	25.4/30	72/84/96
007	450	4.8	3.5	25.4/30	84/96/108
008	305	3.2/4.0	2.2	25.4/30	48
009	355	3.2/4.0/5.0	3.0	50.8	72
010	405	4.0/5.0	2.6	50.8	72
011	455	4.0/5.0	2.8	50.8	72

Product	Outer diameter	Saw Kerf	Plate thickness	Inner diameter	Number of teeth
ID	D(mm）	B(mm)	b(mm)	d(mm)	Z
001	300	3.2	2.6	25.4/30	60/84/96
002	350	3.5	2.5	25.4/30	72/84/96
003	350	4.4	3.2	25.4/30	72/84/96
004	380	4.4	3.2	25.4/30	72/84/96
005	400	4.4	3.2	25.4/30	72/84/96
006	430	4.8	3.5	25.4/30	72/84/96
007	450	4.8	3.5	25.4/30	84/96/108
008	305	3.2/4.0	2.2	25.4/30	48
009	355	3.2/4.0/5.0	3.0	50.8	72
010	405	4.0/5.0	2.6	50.8	72
011	455	4.0/5.0	2.8	50.8	72
