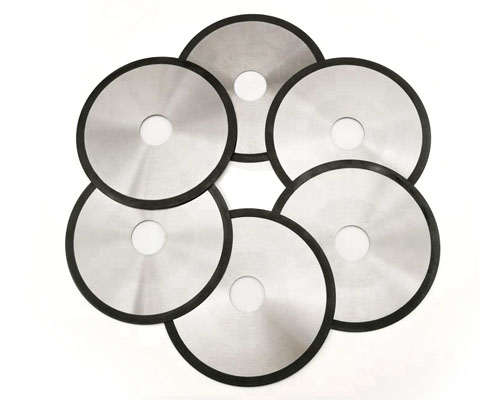

Diamond Cut off Wheel

Model Number: 1A1R
Application: Carbide HM
Material: Diamond
Size: Customized

Diamond Tools

Diamond blade

Wood material special-purpose saw blade Steel copper material special-purpose saw blade Aluminum material industry saw blade Masonry Saw Blade Tile Cutting Disc Marble Cutting Disc concrete Cutting Disc Granite Cutting Disc Blade with protectional teeth Tile turbo diamond blade

Diamond segment

Diamond Segments Gang Saw Segment Core Drill Bits Segment Sandwich Segment Marble Segment Granite Segment Sandstone Segment Grinding Segment Arix Segment

Diamond/CBN grinding wheel

Ceramic(Vitrified)Grinding Wheel Grinding wheels for carbide Diamond Cut off Wheel Diamond Grinding Wheel CBN Grinding Wheel

Polycrystalline diamond compact (PDC cutter)

Custom Special-shaped PDC Cutters Polycrystalline diamond compact(PDC cutter)Special Shaped PDC Sphere shaped PDC Square PDC cutter

Diamond cup wheel

PCD Cup Wheel Single Row Cup Wheel Double Row Cup Wheel continuous turbo cup wheel Segmented Turbo Cup Wheel

Diamond polishing pads

Diamond Polishing Drum Wheel Metal Bond Polishing Pads Diamond Wet Polishing Pads Diamond Dry Polishing Pads Diamond Floor Polishing Pads Convex Polishing Pads

Diamond Core Drill Bits

Poly-crystalline diamond compact bit - PDC Bit Diamond DTH Bit PDC Drill Bit Hot Pressed Drill Bit Electroplated Diamond Drill Bit Geological water well drill bits

Diamond Wire Saw Rope

Diamond Wire- saws for granite quarries Diamond wire saw for cutting Diamond Wire-saws for marble block squaring and profiling Diamond Wire-saws for marble quarries Diamond Wire-saws for Granite block squaring and profiling Diamond Wire-saws for multi-wire machines

Diamond grinding segment/shoes

Diamond grinding shoes Trapezoidal Grinding shoes segments for HTC floor grinder Diamond grinding segment for Husqvarna grinder

Product details
parameter

1A1R Diamond and CBN Wheels, which can be used for Cut-off, Cutting, Grooving, Slotting, Dicing and etc. Resin Bond and metal bond are available for different applications. Diameter can be 50mm to 400mm. Thickness is from 0.5mm to 2mm. Grits can be, D151, D181, D126, D107, D91, D76, D64, D46 and others.

Main Features

1) Fast Cutting, improve cutting effeciency

2) Free of chipping, Excellent cutting surfaces and edges

3) High Precise Cutting and grooving, High accurancy.

4) Smooth cutting, no clipping of the blades

5) Much longer life than tradtional abrasive cutting wheels.

Specification	D (mm)	T (mm)	E(mm)	H (mm)	X (mm)	Grit
1A1R 100x1.0x31.75x10mm	100	1	0.8	31.75	10	D126 or any other
1A1R 125x1.0x31.75x10mm	125	1	0.8	31.75	10	D126 or any other
1A1R 150x1.0x31.75x10mm	150	1	0.8	31.75	10	D126 or any other
1A1R 150x0.8x31.75x10mm	150	0.8	0.6	31.75	10	D126 or any other
1A1R 150x0.5x31.75x10mm	200	1	0.8	31.75	10	D126 or any other
1A1R 200x1.0x31.75x10mm	200	1	0.8	31.75	10	D126 or any other
1A1R 300x1.0x31.75x10mm	300	1.5	1.3	31.75	10	D126 or any other
1A1R 400x1.0x31.75x10mm	400	2	1.8	31.75	10	D126 or any other
