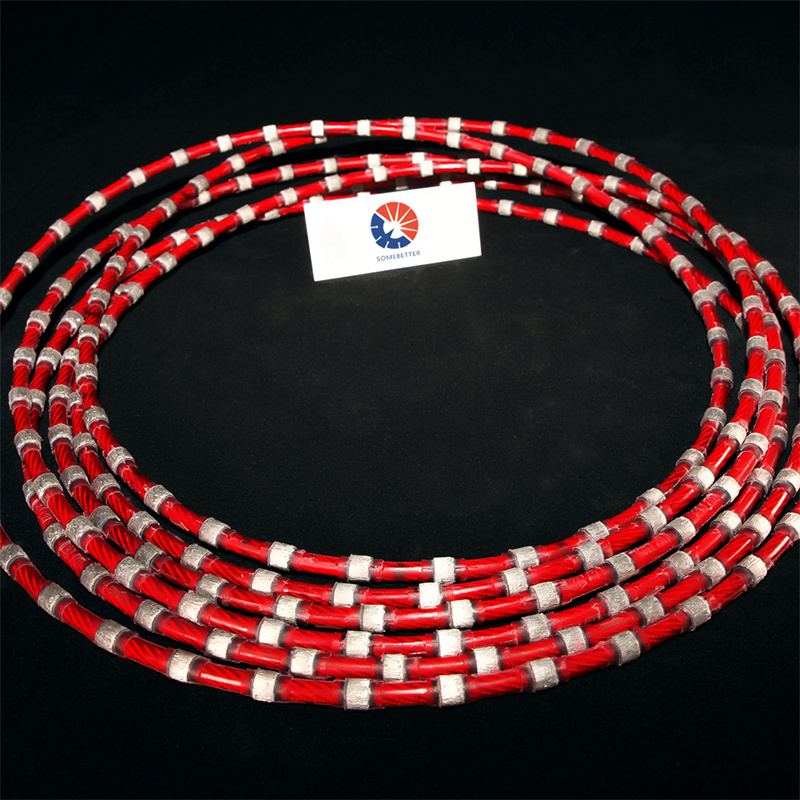

Diamond Wire-saws for marble quarries

Bit Type: Diamond Wire-saws
Size: φ12.5mm, φ11.5mm and custom-made
Applications: To be widely used for marble quarries, and for marble mine block squaring
Package: 370x370x95 mm per carton

Diamond blade

Wood material special-purpose saw blade Steel copper material special-purpose saw blade Aluminum material industry saw blade Masonry Saw Blade Tile Cutting Disc Marble Cutting Disc concrete Cutting Disc Granite Cutting Disc Blade with protectional teeth Tile turbo diamond blade

Diamond segment

Diamond Segments Gang Saw Segment Core Drill Bits Segment Sandwich Segment Marble Segment Granite Segment Sandstone Segment Grinding Segment Arix Segment

Diamond/CBN grinding wheel

Ceramic(Vitrified)Grinding Wheel Grinding wheels for carbide Diamond Cut off Wheel Diamond Grinding Wheel CBN Grinding Wheel

Polycrystalline diamond compact (PDC cutter)

Custom Special-shaped PDC Cutters Polycrystalline diamond compact(PDC cutter)Special Shaped PDC Sphere shaped PDC Square PDC cutter

Diamond cup wheel

PCD Cup Wheel Single Row Cup Wheel Double Row Cup Wheel continuous turbo cup wheel Segmented Turbo Cup Wheel

Diamond polishing pads

Diamond Polishing Drum Wheel Metal Bond Polishing Pads Diamond Wet Polishing Pads Diamond Dry Polishing Pads Diamond Floor Polishing Pads Convex Polishing Pads

Diamond Core Drill Bits

Poly-crystalline diamond compact bit - PDC Bit Diamond DTH Bit PDC Drill Bit Hot Pressed Drill Bit Electroplated Diamond Drill Bit Geological water well drill bits

Diamond Wire Saw Rope

Diamond Wire- saws for granite quarries Diamond wire saw for cutting Diamond Wire-saws for marble block squaring and profiling Diamond Wire-saws for marble quarries Diamond Wire-saws for Granite block squaring and profiling Diamond Wire-saws for multi-wire machines

Diamond grinding segment/shoes

Diamond grinding shoes Trapezoidal Grinding shoes segments for HTC floor grinder Diamond grinding segment for Husqvarna grinder

Product details
parameter

To be widely used for marble quarries, and for marble mine block squaring.

It can be customised according to the information and stone samples provided by the customer, thus improving cutting efficiency and longevity.

Specification and Technical Parameters of Diamond Beads

Specification (mm)	Height of Work Layer(mm)	Manufacture Technique
φ12.5	6.4	Hot Pressed Sintering
φ11.5	6.4	Hot Pressed Sintering

Specification and Performance Parameters of Diamond Wire-saws

Identification	Specification(mm)	Beads/m	Reinforcement
512R40	φ11.5	40	R/R+S
511R40	φ11.0	40	R/R+S
51198	φ11.0	28	S

*P:represents Plastic, R：represents Rubber,S： represents Spring

Cutting Material	Line Speed(m/s)	Cutting Speed(m²/h)	Wire Life(m²/m)
Low Rigidity Granite	35-40	10-15	40-80
Mid-hard Granite	32-35	8-12	25-60
Hard Granite	30-35	6-10	20-30

Specification and Technical Parameters of Diamond Beads

Specification (mm)	Height of Work Layer(mm)	Manufacture Technique
φ12.5	6.4	Hot Pressed Sintering
φ11.5	6.4	Hot Pressed Sintering

Specification and Performance Parameters of Diamond Wire-saws

Identification	Specification(mm)	Beads/m	Reinforcement
512R40	φ11.5	40	R/R+S
511R40	φ11.0	40	R/R+S
51198	φ11.0	28	S

*P:represents Plastic, R：represents Rubber,S： represents Spring

Cutting Material	Line Speed(m/s)	Cutting Speed(m²/h)	Wire Life(m²/m)
Low Rigidity Granite	35-40	10-15	40-80
Mid-hard Granite	32-35	8-12	25-60
Hard Granite	30-35	6-10	20-30
