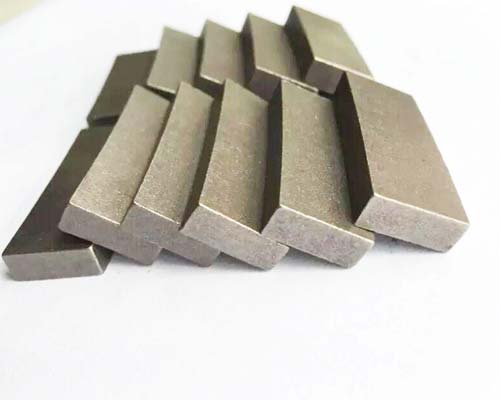

Diamond Segments

Usage cutting&drilling granite/marble/sandstone/lave stone/reinforce concrete Raw Material: synthetic diamond
Feature High quality diamond, advanced technology and strict process control guarantee segment performance
Sizes Customized as your request
M.O.Q 100 pieces

Diamond Tools

Diamond blade

Wood material special-purpose saw blade Steel copper material special-purpose saw blade Aluminum material industry saw blade Masonry Saw Blade Tile Cutting Disc Marble Cutting Disc concrete Cutting Disc Granite Cutting Disc Blade with protectional teeth Tile turbo diamond blade

Diamond segment

Diamond Segments Gang Saw Segment Core Drill Bits Segment Sandwich Segment Marble Segment Granite Segment Sandstone Segment Grinding Segment Arix Segment

Diamond/CBN grinding wheel

CBN Grinding Wheel For Woodturning Tools Ceramic(Vitrified)Grinding Wheel Grinding wheels for carbide Diamond Cut off Wheel Diamond Grinding Wheel CBN Grinding Wheel

Polycrystalline diamond compact (PDC cutter)

Custom Special-shaped PDC Cutters Polycrystalline diamond compact(PDC cutter)Special Shaped PDC Sphere shaped PDC Square PDC cutter

Diamond grinding tools

Diamond grinding shoes Trapezoidal Grinding shoes segments for HTC floor grinder Diamond grinding segment for Husqvarna grinder PCD Cup Wheel Single Row Cup Wheel Double Row Cup Wheel continuous turbo cup wheel Segmented Turbo Cup Wheel

Diamond polishing pads

Diamond Polishing Drum Wheel Metal Bond Polishing Pads Diamond Wet Polishing Pads Diamond Dry Polishing Pads Diamond Floor Polishing Pads Convex Polishing Pads

Diamond Core Drill Bits

Poly-crystalline diamond compact bit - PDC Bit Diamond DTH Bit PDC Drill Bit Hot Pressed Drill Bit Electroplated Diamond Drill Bit Geological water well drill bits

Diamond Wire Saw Rope

Diamond Wire- saws for granite quarries Diamond wire saw for cutting Diamond Wire-saws for marble block squaring and profiling Diamond Wire-saws for marble quarries Diamond Wire-saws for Granite block squaring and profiling Diamond Wire-saws for multi-wire machines

PCD saw blades

Ultra-thin PCD saw blade for cutting aluminum PCD saw blade for cutting the Panel Furniture

Product details
parameter

Iron powder,copper powder & other materials are sintered with diamond powder together to become normal diamond segment. The segment formula is different according to their different usages.
When diamond segment is sharpness and high cutting efficient, the flexure strength of diamond grain is down, so use life is reduced; on the contrary, if adding the segment durability, then it will be blunt, then work efficient will be down.

Feature:
High quality diamond, advanced technology and strict process control guarantee diamond segment performance

Application:
Process concrete,reinforced concrete, brick, block,masonry and stone materials

Machinery:
Diamond circular saw blade, gang blade,diamond drill bit,diamond cup grinding wheel.

Parameter:

Outer Diameter	Length	Width	Height	SEG.NO./Set
250mm	40mm	2.6/2.8	10/15/20	17/18
300mm	40mm	2.8/3.0	10/15/20	20/21
350mm	40mm	3.0/3.2	10/15/20	24
400mm	40mm	3.4	10/15/20	28
450mm	40mm	3.6	10/15/20	32
500mm	40mm	3.8/3.6	10/15/20	35
600mm	40mm	4.6/4.2	10/15/20	42
700mm	40mm	5	10/15/20	50
725mm	40mm	5	20	54
800mm	24mm	5.4	10/15/20	46
900mm	24mm	6	10	24
1000mm	24mm	6.5/7.0	13/15/20	70
1200mm	24mm	7.5/6.5/6.6/6.8	13/15/20	80
1300mm	24mm	7.2/7.8	13	88
1400mm	24mm	7.2/7.8/7.8/8.4	10/15/20	96
1600mm	24mm	8.0/8.2/8.4/8.6/9.0/9.2	12/15/20	108
1800mm	24mm	9.0/9.2	13/15	120
2000mm	24mm	8.5/8.8/9.5	13/15/20	132
2200mm	24mm	9.9/10.0/10.6/11.2	15	136
2500mm	24mm	10.5/11.5	15	140
2700mm	24mm	11/12.2	20	150
3000mm	24mm	11/11.2/12.5/13	20/25/33	160
3500mm	24mm	12.0/12.2/13.5	20/26	180

Other Sizes are upon requirements
