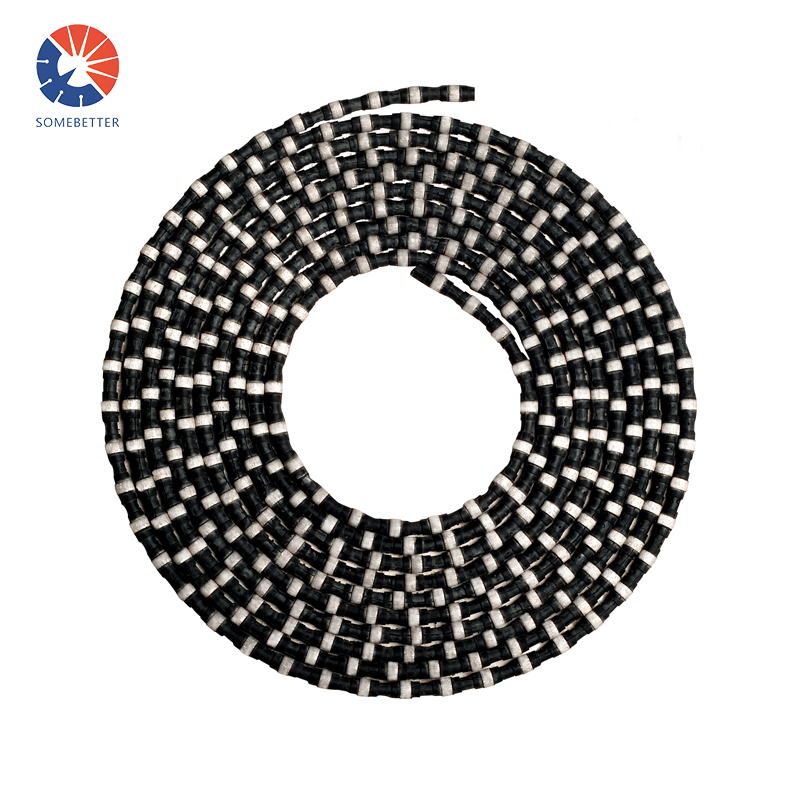

Diamond Wire-saws for Granite block squaring and profiling

Bit Type: Diamond Wire-saws
Size: φ11.5mm, φ11mm, φ8.8mm, φ8.3mm and custom-made
Applications: To be widely used for granite block squaring, sizing and circular slabs, special shape surfaces processing etc.
Package: 370x370x95 mm per carton

Diamond blade

Wood material special-purpose saw blade Steel copper material special-purpose saw blade Aluminum material industry saw blade Masonry Saw Blade Tile Cutting Disc Marble Cutting Disc concrete Cutting Disc Granite Cutting Disc Blade with protectional teeth Tile turbo diamond blade

Diamond segment

Diamond Segments Gang Saw Segment Core Drill Bits Segment Sandwich Segment Marble Segment Granite Segment Sandstone Segment Grinding Segment Arix Segment

Diamond/CBN grinding wheel

CBN Grinding Wheel For Woodturning Tools Ceramic(Vitrified)Grinding Wheel Grinding wheels for carbide Diamond Cut off Wheel Diamond Grinding Wheel CBN Grinding Wheel

Polycrystalline diamond compact (PDC cutter)

Custom Special-shaped PDC Cutters Polycrystalline diamond compact(PDC cutter)Special Shaped PDC Sphere shaped PDC Square PDC cutter

Diamond grinding tools

Diamond grinding shoes Trapezoidal Grinding shoes segments for HTC floor grinder Diamond grinding segment for Husqvarna grinder PCD Cup Wheel Single Row Cup Wheel Double Row Cup Wheel continuous turbo cup wheel Segmented Turbo Cup Wheel

Diamond polishing pads

Diamond Polishing Drum Wheel Metal Bond Polishing Pads Diamond Wet Polishing Pads Diamond Dry Polishing Pads Diamond Floor Polishing Pads Convex Polishing Pads

Diamond Core Drill Bits

Poly-crystalline diamond compact bit - PDC Bit Diamond DTH Bit PDC Drill Bit Hot Pressed Drill Bit Electroplated Diamond Drill Bit Geological water well drill bits

Diamond Wire Saw Rope

Diamond Wire- saws for granite quarries Diamond wire saw for cutting Diamond Wire-saws for marble block squaring and profiling Diamond Wire-saws for marble quarries Diamond Wire-saws for Granite block squaring and profiling Diamond Wire-saws for multi-wire machines

PCD saw blades

Ultra-thin PCD saw blade for cutting aluminum PCD saw blade for cutting the Panel Furniture

Product details
parameter

To be widely used for granite block squaring, sizing and circular slabs, special shape surfaces processing etc.

It can be customised according to the information and stone samples provided by the customer, thus improving cutting efficiency and longevity.

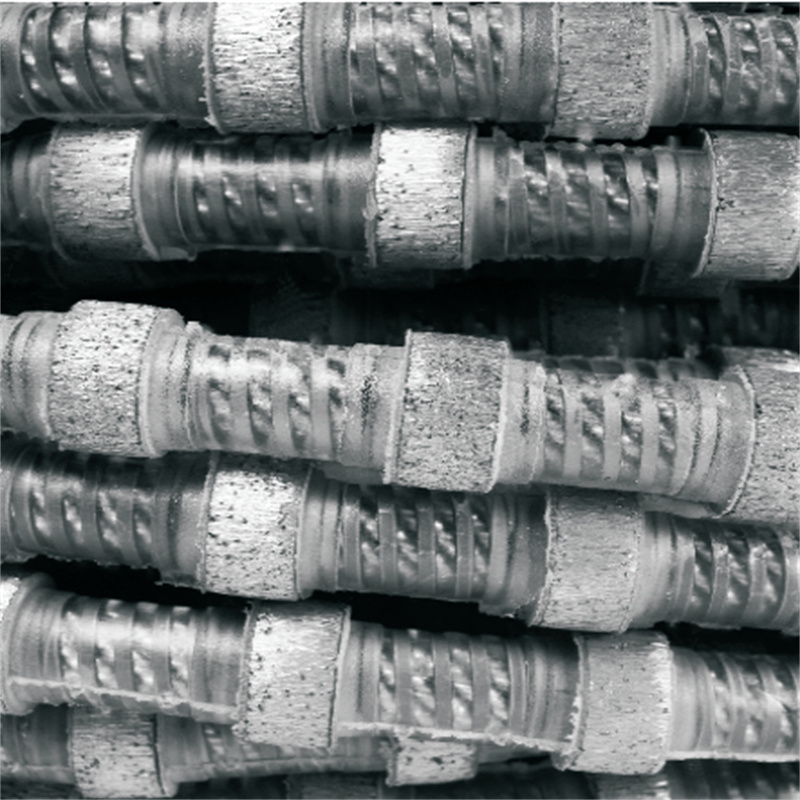

Specification and Technical Parameters of Diamond Beads

Specification (mm)	Height of Work Layer(mm)	Manufacture Technique
φ11.5	6.4	Hot Pressed Sintering
φ11.0	6.4
φ8.8	6.0	Hot Pressed Sintering
φ8.3	6.0

Specification and Performance Parameters of Diamond Wire-saws

Identification	Specification	Beads/m	Reinforcement	Functiont
412P37	011.5	37	P/P+S	Squaring
411P37	011.0	37	P/P+S	Squaring
409P37	08.8	37	P	Profiling
408P37	08.3	37	P	Profiling

*P:represents Plastic, R：represents Rubber,S： represents Spring

Cutting Material	Line Speed(m/s)	Cutting Speed(m²/h)	Wire Life
Low Rigidity Granite	24-28	1.2-1.8	15-25
Mid-hard Granite	22-26	0.8-1.2	10-20
Hard Granite	20-24	0.4-0.6	8-15
Abrasive Granite	24-28	0.6-0.8	15-25

Specification and Technical Parameters of Diamond Beads

Specification (mm)	Height of Work Layer(mm)	Manufacture Technique
φ11.5	6.4	Hot Pressed Sintering
φ11.0	6.4
φ8.8	6.0	Hot Pressed Sintering
φ8.3	6.0

Specification and Performance Parameters of Diamond Wire-saws

Identification	Specification	Beads/m	Reinforcement	Functiont
412P37	011.5	37	P/P+S	Squaring
411P37	011.0	37	P/P+S	Squaring
409P37	08.8	37	P	Profiling
408P37	08.3	37	P	Profiling

*P:represents Plastic, R：represents Rubber,S： represents Spring

Cutting Material	Line Speed(m/s)	Cutting Speed(m²/h)	Wire Life
Low Rigidity Granite	24-28	1.2-1.8	15-25
Mid-hard Granite	22-26	0.8-1.2	10-20
Hard Granite	20-24	0.4-0.6	8-15
Abrasive Granite	24-28	0.6-0.8	15-25
