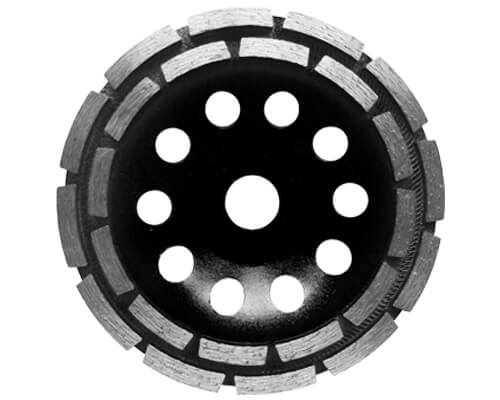

Double Row Cup Wheel

  • Advantages Processing good flatness, high grinding efficiency, high use life
  • Outer Diameter 100mm, 105mm, 110mm, 115mm, 125mm, 150mm, 178mm, 180mm, 230mm
  • Feature ideal tool parts for beveling, smoothing and sharping, excellent performance.

Diamond Tools

Diamond blade
Diamond segment
Diamond/CBN grinding wheel
Polycrystalline diamond compact (PDC cutter)
Diamond grinding tools
Diamond polishing pads
Diamond Core Drill Bits
Diamond Wire Saw Rope
  • Product details
  • parameter
Double row diamond cup wheels are mainly used for buffing and sculpturing stones on the manual cutting machines and manual grinding machines, characterized by high working efficiency and using easily.
Double row diamond cup wheels Feature:
Double row grinding wheel is ideal for beveling,smoothing and sharping,excellent performance.
Application:
For granite, marble, concrete products, masonry, construction materials, and all types of natural stones
Machinery:
Angle grinder, hand grinding machine, manual cutting machines.

Parameter:
Outer Diameter Arbor Size Segment Dimension Segment Number
Inches Metric (mm) Inches Metric(mm)
4" 100 7/8" 22.23 30*5*7.2 8
4.125" 105 7/8" 22.23 31*5*7.2 8
4.3" 110 7/8" 22.23 32*5*7.2 8
4.5" 115 7/8" 22.23 30*5*7.2 9
5" 125 7/8" 22.23 30*5*7.2 10
6" 150 7/8" 22.23 30*5*7.2 12
7" 178 7/8" 22.23 30*5*7.2 12
7.1" 180 7/8" 22.23 30*5*7.2 13
9" 230 7/8" 22.23 32*5*7.2 18

                                        Other sizes and shapes are upon customers' requirements

Other related products:
Single row diamond cup wheel          continuous turbo cup wheel          Segmented turbo diamond cup wheel
Outer Diameter Arbor Size Segment Dimension Segment Number
Inches Metric (mm) Inches Metric(mm)
4" 100 7/8" 22.23 30*5*7.2 8
4.125" 105 7/8" 22.23 31*5*7.2 8
4.3" 110 7/8" 22.23 32*5*7.2 8
4.5" 115 7/8" 22.23 30*5*7.2 9
5" 125 7/8" 22.23 30*5*7.2 10
6" 150 7/8" 22.23 30*5*7.2 12
7" 178 7/8" 22.23 30*5*7.2 12
7.1" 180 7/8" 22.23 30*5*7.2 13
9" 230 7/8" 22.23 32*5*7.2 18

                                        Other sizes and shapes are upon customers' requirements
