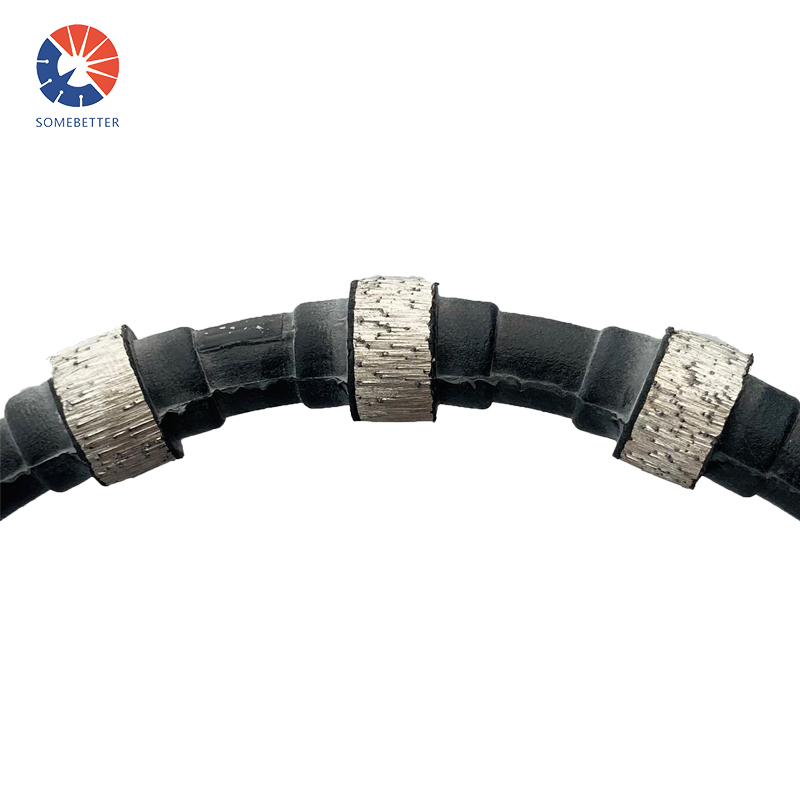

Diamond Wire-saws for multi-wire machines

Bit Type: Diamond Wire-saws for multi-wire machines
Size: φ8.3 mm, φ7.3mm, φ6.3mm for choice
Applications: Squaring or profiling marble, granite
Package: 370x370x95 mm per carton

Diamond blade

Wood material special-purpose saw blade Steel copper material special-purpose saw blade Aluminum material industry saw blade Masonry Saw Blade Tile Cutting Disc Marble Cutting Disc concrete Cutting Disc Granite Cutting Disc Blade with protectional teeth Tile turbo diamond blade

Diamond segment

Diamond Segments Gang Saw Segment Core Drill Bits Segment Sandwich Segment Marble Segment Granite Segment Sandstone Segment Grinding Segment Arix Segment

Diamond/CBN grinding wheel

Ceramic(Vitrified)Grinding Wheel Grinding wheels for carbide Diamond Cut off Wheel Diamond Grinding Wheel CBN Grinding Wheel

Polycrystalline diamond compact (PDC cutter)

Custom Special-shaped PDC Cutters Polycrystalline diamond compact(PDC cutter)Special Shaped PDC Sphere shaped PDC Square PDC cutter

Diamond cup wheel

PCD Cup Wheel Single Row Cup Wheel Double Row Cup Wheel continuous turbo cup wheel Segmented Turbo Cup Wheel

Diamond polishing pads

Diamond Polishing Drum Wheel Metal Bond Polishing Pads Diamond Wet Polishing Pads Diamond Dry Polishing Pads Diamond Floor Polishing Pads Convex Polishing Pads

Diamond Core Drill Bits

Poly-crystalline diamond compact bit - PDC Bit Diamond DTH Bit PDC Drill Bit Hot Pressed Drill Bit Electroplated Diamond Drill Bit Geological water well drill bits

Diamond Wire Saw Rope

Diamond Wire- saws for granite quarries Diamond wire saw for cutting Diamond Wire-saws for marble block squaring and profiling Diamond Wire-saws for marble quarries Diamond Wire-saws for Granite block squaring and profiling Diamond Wire-saws for multi-wire machines

Diamond grinding segment/shoes

Diamond grinding shoes Trapezoidal Grinding shoes segments for HTC floor grinder Diamond grinding segment for Husqvarna grinder

Product details
parameter

Suitable for multi-wire machines to cut different kinds of granite and marble slab.

Used to cut granite and marble, buiding, bridge and sunken ship, steel pipe, steel cable, concrete, reinforce concrete, steel ect...

Specification and Technical Parameters of Diamond Beads

Specification ( mm )	Height of Work Layer( mm )	Manufacture Technique
φ8.3	6.0	Hot Pressed Sintering
φ7.3	7.0/7.5
φ6.3	7.0/7.5	Hot Pressed Sintering

Other specification are available based upon requirements.

Specification and Performance Parameters of Diamond Wire-s

Identification	Specification( mm )	Beads/m	Reinforcement
408P37	φ8.3	37	P
407P37	φ7.3
406P37	φ6.3	37	P

P： represents Plastic R： represents Rubber S： represents Spring

Cutting Material	Line Speed( mm)	Cutting Speed(m²/h）	Wire Life(m²/m)
Low Rigidity Granite	28-32	1.2-1 5	10-15
Mid-hard Granite	28-32	0.6-1.2	8-10
Hard Granite	28-32	0.4-0.6	6-8
