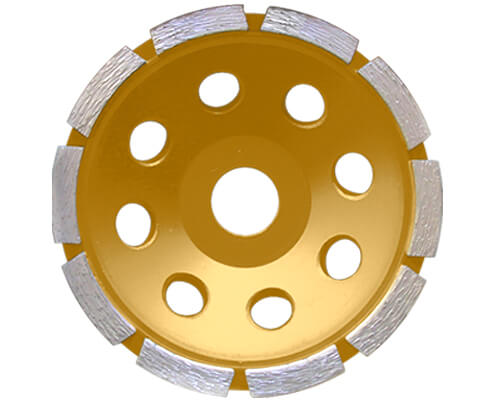

Single Row Cup Wheel

  • Advantages Processing good flatness, high grinding efficiency, high use life
  • Outer Diameter 100mm, 105mm, 110mm, 115mm, 125mm, 150mm, 178mm, 180mm, 230mm
  • Feature ideal tool parts for beveling, smoothing and sharping, excellent performance.

Diamond Tools

Diamond blade
Diamond segment
Diamond/CBN grinding wheel
Polycrystalline diamond compact (PDC cutter)
Diamond grinding tools
Diamond polishing pads
Diamond Core Drill Bits
Diamond Wire Saw Rope
  • Product details
  • parameter
Single row diamond cup wheel is designed for grinding all kinds of marble, granite, concrete, and other construction materials, and ideal for beveling, smoothing and shaping
Feature:
Single row grinding wheel is ideal for beveling, smoothing and sharping, excellent performance.
Application:
FOR granite, marble, concrete products, masonry, construction materials, and all types of natural stones
Machinery:
Angle grinder

Parameter:
Outer Diameter Arbor Size Segment Dimension Segment Number
Inches Metric (mm) Inches Metric(mm)
4" 100 7/8" 22.23 30*5*7.2 8
4.125" 105 7/8" 22.23 31*5*7.2 8
4.3" 110 7/8" 22.23 32*5*7.2 8
4.5" 115 7/8" 22.23 30*5*7.2 9
5" 125 7/8" 22.23 30*5*7.2 10
6" 150 7/8" 22.23 30*5*7.2 12
7" 178 7/8" 22.23 30*5*7.2 12
7.1" 180 7/8" 22.23 30*5*7.2 13
9" 230 7/8" 22.23 32*5*7.2 18

                                        Other sizes and shapes are upon customers' requirements

Other related products:
double row diamond cup wheel          continuous turbo cup wheel          Segmented turbo diamond cup wheel
Outer Diameter Arbor Size Segment Dimension Segment Number
Inches Metric (mm) Inches Metric(mm)
4" 100 7/8" 22.23 30*5*7.2 8
4.125" 105 7/8" 22.23 31*5*7.2 8
4.3" 110 7/8" 22.23 32*5*7.2 8
4.5" 115 7/8" 22.23 30*5*7.2 9
5" 125 7/8" 22.23 30*5*7.2 10
6" 150 7/8" 22.23 30*5*7.2 12
7" 178 7/8" 22.23 30*5*7.2 12
7.1" 180 7/8" 22.23 30*5*7.2 13
9" 230 7/8" 22.23 32*5*7.2 18

                                        Other sizes and shapes are upon customers' requirements
