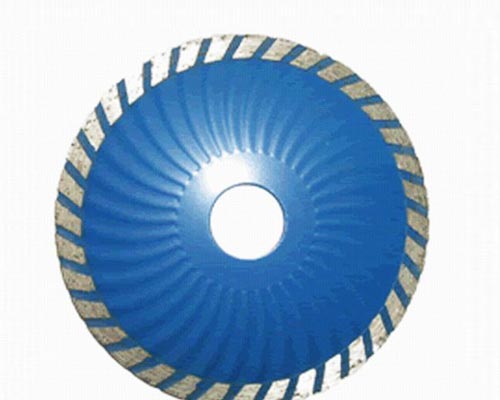

Sintered Diamond Blade

  • Usage Marble,Granite,Asphalt,concrete,clay and other brittle materials.
  • Size 4'',4.5'',5'',6'',7'',8'',9'',10'',11'',12'',14'',16'',18'',20'',24''.
  • Slot types Key slot, narrow slot, U slot, Custom-Made Narrow slot
  • Matrix 56MN
  • Feature Sintered diamond saw blade is suitable for diameters below 230mm blades

Diamond Tools

Diamond blade
Diamond segment
Diamond/CBN grinding wheel
Polycrystalline diamond compact (PDC cutter)
Diamond grinding tools
Diamond polishing pads
Diamond Core Drill Bits
Diamond Wire Saw Rope
  • Product details
  • parameter
Sinter and press segment with matrix together to be sintered diamond blade, there are hot press and cold press 2 kinds.
Sintered diamond saw blade feature:
Suitable for the diamond saw blades which diameters are below 230mm
Sintered diamond saw blade application:
General cutting of granite ,marble,masonry ,concrete materials, precise cutting of ceramic tiles,quarry tiles,water flood cooling enhances cutting quality and blade life ,engineering bricks ,and various kinds of construction materials.
Machinery
Hand held saw, circular saw, high speed power saw, Angle grinder, Walk behind saw low hp, Flat saw, Tile saw, Masonry saw, Stone Saw

Parameter:
Outer Diameter Arbor Size Segment Dimension Segment Number
Inches Metric (mm) Inches Metric (mm)
4" 105 7/8" 22.23 32*2.0*8/10 8
4.5" 115 7/8" 22.23 32*2.0*8/10 9
5" 125 7/8" 22.23 32*2.2*8/10 10
6" 150 7/8" 22.23 32*2.2*8/10 12
7" 180 7/8" 22.23 32*2.4*8/10 13
8" 200 7/8" 22.23 32*2.4*8/10 13
9" 230 7/8" 22.23 32*2.6*8/10 16
10" 250 7/8" 22.23 32*2.6*8/10 18
12" 300 1" 25.4 32*3.0*8/10 20
14" 350 1" 25.4 32*3.2*8/10 24
16" 400 1" 25.4 32*3.4*8/10 28
18" 450 1" 25.4 32*3.6*8/10 32
20" 500 1" 25.4 32*3.6*8/10 35
24" 600 1" 25.4 32*4.2*8/11 42
                                                    Other Sizes are upon requirements
