Polycrystalline diamond compact(PDC cutter)

  • Item name Polycrystalline diamond compact(PDC cutter)
  • Shape Round, spherical, square, triangle, customized
  • Usage For oil&gas drilling, Geological exploration, pdc tools
  • Diameter 8mm, 10mm, 13mm, 14mm, 16mm, 19mm

  • Product details
  • parameter

PDC cutter(Polycrystalline Diamond Compact) is composed of polycrystalline diamond(PCD) and cemented carbide substrate, which is a kind of super-hard composite produced under ultra high pressure and ultra high temperature. It integrates the advantages of diamond and tungsten carbide.


Main Feature:
1. Excellent wear ability and impact resistance
2. Long useful life, high efficiency, and good cost performance
3. The useful life of the PDC bit is 4~5 times than the diamond bit, 10 times than the tungsten carbide bit

Application:
PDC cutter(Polycrystalline Diamond Compact) is widely used for making tools applied in the field of oil&gas drilling, geology exploring, coalfield mining and mechanical processing industry.


1, Standard: Standard PDC adopts new flat, slotted junction plane, the thickness of diamond layer is from 0.8-2.5mm according to client’s requirement. They are widely used in Engineering and geological purpose.


specification R1919 R1916 R1913 R1619 R1616 R1613 R1313 R1308 R1008 R0808 R0803
D(mm) 19.05 19.05 16.00 16.00 16.00 16.00 13.44 13.00 10.00 8.00 8.00
H(mm) 19.00 16.31 13.20 19.00 16.31 13.20 13.20 8.00 8.00 8.00 3.53
2, Sphere shape:
Sphere shaped PDC has more excellent shock-resistance toughness (ballistic work is equal to that of hard alloy) and it can be applied to percussion drilling, medium and small drill bit, oil roller bit, down-the-hole drill bit and geothermal drilling etc.

specification Q1114 Q1308 Q1313
D(mm) 11.10±0.1 13.44±0.1 13.44±0.1
H(mm) 14.30±0.1 8.00±0.1 13.20±0.1
R(mm) 5.76 16.00 16.00
blunt conical-ended shape insert:
specification Z1116 Z1119 Z1217




D(mm) 11.60±0.1 11.60±0.1 12.10±0.1
H(mm) 16.00±0.1 19.10±0.1 17.00±0.1
R(mm) 4.00 4.20 4.50
d 60º 56º 54º

3, Special Shaped PDC
We could provide special shaped PDC according to client’s requirement, including Rectangular shape, Triangle shape, Big Diameter and other shape etc.

Sizes are upon client’s requirement!
Parameter:

Name Application Code
Round PDC For Oil/Gas field drilling and
Geological,Coalfield, Stone
processing
0808
1004
1008
1204
1304
1308
1313
1608
1613
1616
1908
1913
1916
1919

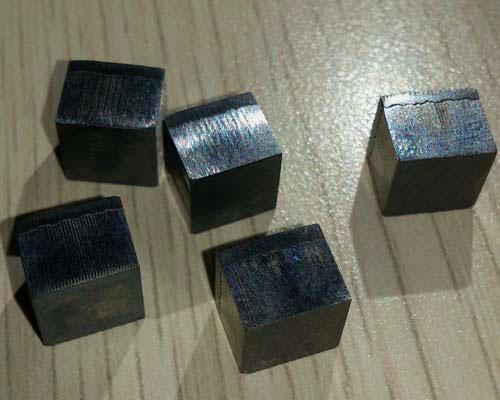

Square PDC For Geological, Coalfield,
Stone processing
9.4x9.4x8.0
12.7x12.7x8.0
12x12x4.5
Spherical PDC For core bits and other uncertain
industry
1114
1117
1210
1218
1308
1420
1620
1624
