Core Drill Bits Segment

  • Usage reinforced concrete/concrete/tiles/pavers/granite
  • Size Customized as your request
  • Material Diamond/Metal powder
  • Bond Cobalt/Copper/Iron

Diamond Tools

Diamond blade
Diamond segment
Diamond/CBN grinding wheel
Polycrystalline diamond compact (PDC cutter)
Diamond cup wheel
Diamond polishing pads
Diamond Core Drill Bits
Diamond Wire Saw Rope
Diamond grinding segment/shoes
  • Product details
  • parameter


Core Drill Bits Segment:

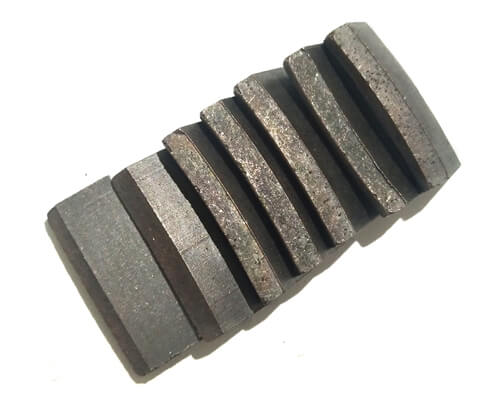

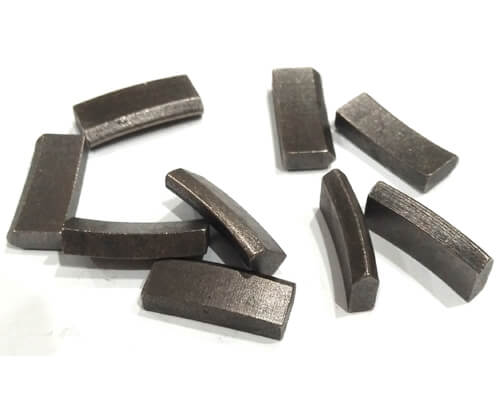

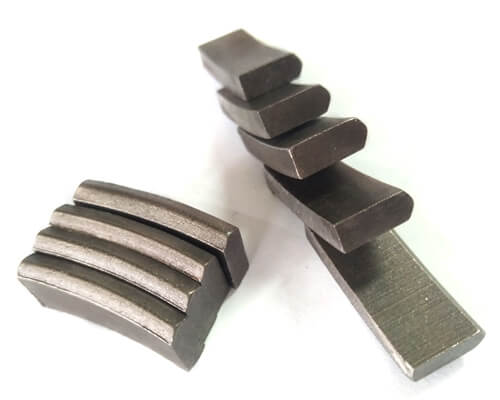

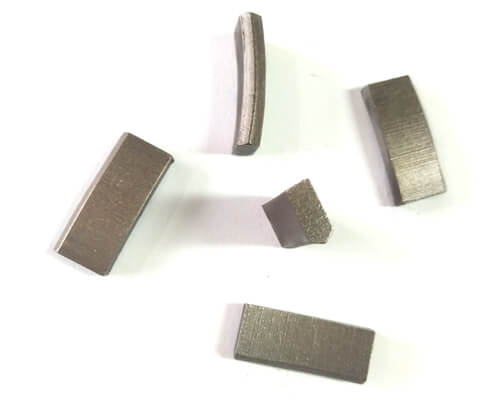

1.Different shape: Crown segment, Turbo segment, Roof segment, Flat segment

2.Various diameters available, Size can be produced as request

3.Easy start segments

4.Diamond segment formula can be adjusted according to customer requirements

5.Long working life and high cutting speeds

6.Can be used on both hand held and rig mounted machines

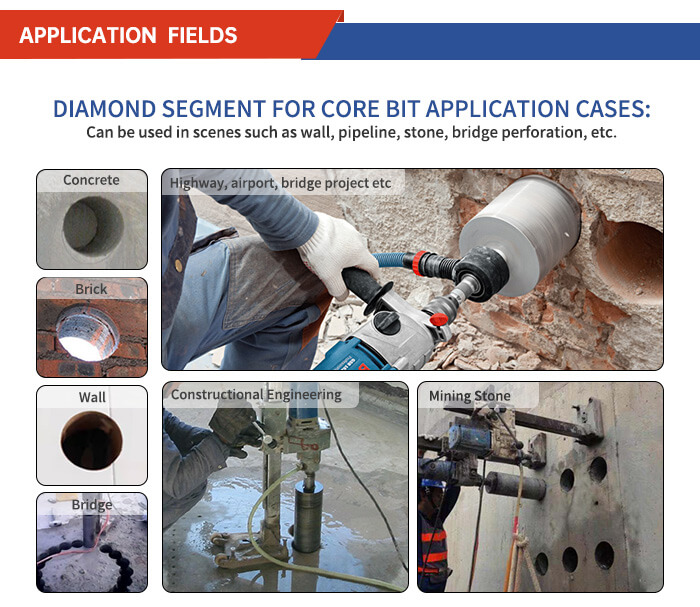

7.Application: for hard reinforced concrete/concrete/tiles/pavers/granite/rock/precast concrete/core filled blockwork/limestone/bricks etc.

8.Water must be used for these concrete core drill bits to ensure a smooth, clean, trouble free cut and to ensure maximum life of the bit.


Diameter of core bit (mm) Description Segment size               Segment number               Welding
51 Processing materials:reinforce concrete
Connection:1 1/4" UNC;
Barrel:450mm;
22*4*10 5 Frequency copper welding
63 24*4*10 6
66 6
76 7
83 8
96 9
102 9
114 10
120 24*4.2*10 11
127 11
132 11
152 24*4.5*10 12
162 12
180 14
200 16
230 18
254 20
300 24*5*10 25
